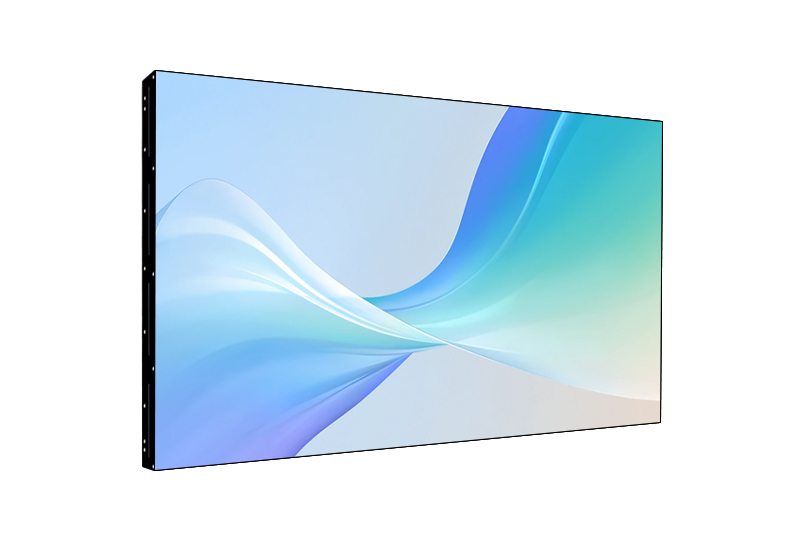

Huayun Vision - Samsung 55 inch LCD splicing screen (1.7mm seam)
Specification and model: HS-5517PD (500 brightness 1.7mm seam)
HS-5517 ultra narrow edge splicing screen, with sturdy and reliable borders. The 1.7mm ultra narrow border reduces the distance between borders, making it easy to watch the same picture when forming a TV splicing wall; Professional level high-definition image processing technology improves the color uniformity of TV splicing walls (composed of multiple splicing screens), making the picture appear very clean and tidy; High performance anti glare surface treatment disperses the reflected light of surrounding light, greatly improving the readability of images and videos displayed on the screen.
|
HS-5517PD LCD splicing unit specifications |
|||
|
[Screen Parameters] |
|||
|
Panel Type |
Original Samsung splicing screen (A-level) |
Physical joint |
1.7mm |
|
screen size |
55 inches |
Backlight |
WLED |
|
Screen ratio |
16：9 |
brightness |
500 cd/m² |
|
outline dimension |
1211.6×682.4×68.1 mm |
contrast ratio |
4000：1 |
|
Display Size |
1209.6×680.4 mm |
Display Color |
16.7M |
|
physical resolution |
1920×1080 |
response time |
8ms |
|
Pixel pitch |
0.63×0.63mm |
Scan frequency |
60HZ |
|
viewing angle |
Up and down 178 °, about 178 ° |
Backlight life |
≥ 50000 hours |
|
[Function Overview] |
|||
|
Splicing method |
M × N flexible splicing, horizontal splicing, vertical splicing, can achieve 15 rows and 15 columns, beautiful and elegant |
||
|
display function |
Full screen splicing, arbitrary combination, single screen display (cross screen roaming, image overlay optional) |
||
|
Display effect |
High brightness, high color gamut, and high contrast ensure perfect display effect; |
||
|
Display Color |
16.7M color, realistically reproducing every detail; |
||
|
viewing angle |
The viewing angle is above 178 °, providing a comprehensive viewing experience |
||
|
response speed |
8ms fast response to avoid lagging and trailing phenomena |
||
|
image processing |
10 bit image chip processing technology, 3D digital filtering and 3D digital noise reduction technology; |
||
|
product quality |
Military grade components, supporting 24-hour x 365 day uninterrupted operation; |
||
|
Support resolution |
1080P and downward compatibility |
||
|
operating mode |
Professional large screen control software (RS232 communication mode) |
||
|
FUNCTION |
By controlling software on/off, signal switching, mode switching, Chinese menu, efficient management |
||
|
menu language |
Chinese English |
||
|
Green Product |
Low energy consumption, zero radiation, stable image, no impact on eyes, environmentally friendly and healthy |
||
|
Signal support |
|||
|
VGA INPUT |
1 VGA input |
||
|
DVI input |
1 DVI input |
||
|
HDMI input |
1 HDMI input |
||
|
Composite Video IN |
2 BNC inputs and 1 BNC loop output |
||
|
Level networking port |
1 RJ45-8 input and 2 RJ45-8 outputs (RS232 protocol) |
||
|
Color difference input |
optional |
||
|
S-terminal input |
optional |
||
|
[Work Environment] |
|||
|
power input |
AC100-240V, 50 /60 Hz |
||
|
Working power consumption |
≤160W |
||
|
standby power |
≤1W |
||
|
Usage temperature |
0℃～50℃ |
||
|
storage temperature |
-20℃～65℃ |
||
Characteristics of Signal Loop Communication Board (optional)
(1) Supporting 4K input, when using a 4-piece 1920 splicing screen (3840x2160), it can achieve point-to-point display without compression or stretching, resulting in clearer and more realistic display effects;
(2) Support DP loop connection, any input signal can be passed through the DP output loop to the DP input port of the next screen. This function can replace some functions of the distributor and matrix (if the front-end signal access is a 4k signal, it replaces the 4k distributor and 4k matrix) (no longer requiring a signal distributor);
(3) The input signal supports 90 degree, 180 degree, and 270 degree flipping, with excellent flipping effects.
(4) Support machine code (address code), the row and column addresses can be obtained at a glance, just fill in the control software, no longer have to worry about calculating binary;
(5) 13661920 commonly used screen parameters (supporting 8-bit and 10 bit LVDS LCD screens) system integration, which can be set through a dip switch during use, making installation and after-sales very convenient, eliminating the trouble of burning programs;
(6) The signal automatic detection function will automatically switch to the signal source when a signal input is detected.
(7) ST5810 PLUS supports 4k vby1 60hz LCD screen (optional).
(8) Support one signal (signal can support up to 4k) for full screen roaming and stacking (optional).
