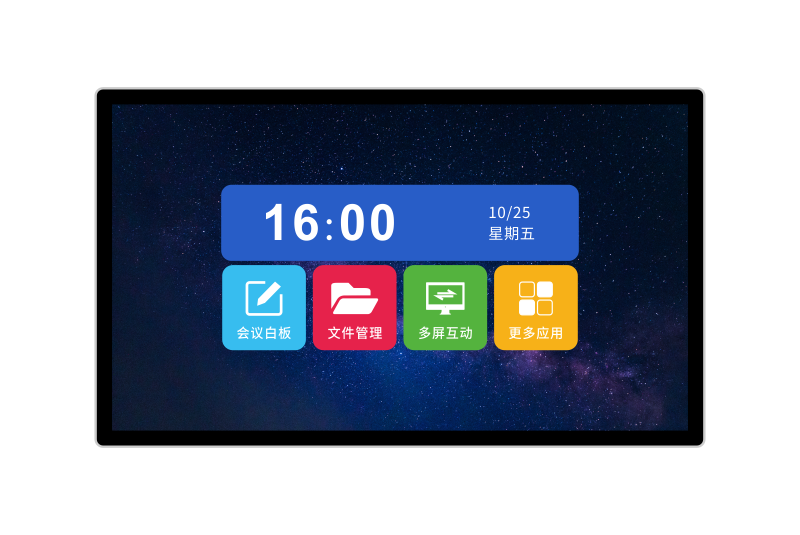

Wall mounted - Touch all-in-one machine

Wall mounted - Touch all-in-one machine

Wall-mounted touch all-in-one machine, which integrates advanced touch screen, industrial control, computer and other technologies, can realize public information query, multimedia teaching, daily office, hotel catering, etc., equipped with scanners, card readers, micro printers and other peripherals, It can meet specific needs such as card swiping and printing. It can easily realize various operations such as video playback, picture display, viewing, Internet access, annotation, presentation and interaction, multi-touch, etc., making application presentations such as conferences, training, classrooms, presentations, and queries more vivid, lively, efficient, and man-machine The interaction is more intuitive, convenient and convenient.

我要采购 立即咨询

产品详情 & 参数


Huayun Vision - Wall mounted touch all-in-one machine

Product features:

☞ Streamlined body, beautiful and fashionable design, perfectly integrated into the business/living environment;
Metal shell design, embedded with 4MM tempered glass, providing excellent protection function;
☞ Industrial grade aluminum profiles and cold-rolled steel plates, not easily deformed, ensuring long-lasting shape stability;
☞ Ultra thin LED LCD screen, with high-definition and high brightness images, showcasing perfect high-definition picture quality;
Multiple signal interfaces, supporting multiple signal inputs/outputs;
Low power consumption, zero noise, good heat dissipation design, supporting all-weather operation;
☞ Infrared touch and capacitive touch are optional, with high sensitivity, fast speed, and fast human-machine interaction query without pause;
Professional industrial control motherboard, Intel high-end processor, supports multi touch;
Suitable for education and training, exhibition display, public media, video conferencing, military command, traffic management, etc.

Installation methods: bracket, K-type, wall mounted, can be customized according to actual needs in terms of size, appearance, and functionality.


Wall mounted - touch all-in-one machine (capacitive/infrared)
Panel parameters screen size 32 inches 43 inches 49 inches 55 inches 65 inches 75 inches 85 inches 98 inches
model HS-320CM HS-430CM HS-490CM HS-550CM HS-650CM HS-750CM HS-850CM HS-980CM
outline dimension 740×434.7mm 983×571.5mm 1137.4×658.5mm 1252.1×723.5mm 1488.4×863.4mm 1710×994mm 1934..8×1120.5mm 2218.4×1280mm
resolution 1920*1080 1920*1080 1920*1080 1920*1080 3840*2160 3840*2160 3840*2160 3840*2160
brightness 350cd/㎡ 350cd/㎡ 350cd/㎡ 350cd/㎡ 350cd/㎡ 350cd/㎡ 350cd/㎡ 350cd/㎡
contrast ratio 3000:1 3000:1 3000:1 4000:1 4000:1 5000:1 5000:1 6000:1
response time 6ms 6ms 6ms 6ms 6ms 6ms 6ms 6ms
service life 50000 hours 60000 hours 60000 hours 60000 hours 60000 hours 60000 hours 60000 hours 60000 hours
touchfeelginsengnumber touch technology
Infrared touch/capacitive touch optional
tempered glass Thickness greater than 3MM
writing style Fingers, touch pen
Theoretical click count More than 600 million single touch operations
Touch accuracy 95% of the area has a positioning error of less than 2mm and an edge positioning error of less than 5mm
Support touch point count 20 point touch control
systeminterconnected systemginsengnumber CPU Intel i5 6th generation clock speed 2.3G
Memory 4G
Hard disk 128G
interface DC*1/HDMI*1/VGA*1/RS232*1/RJ45*1/USB2.0*2/USB3.0*2/MIC*1/PCAudio*1
Pre installed system Windows7
The above system configuration can be changed to meet practical needs or replaced with an Android system
