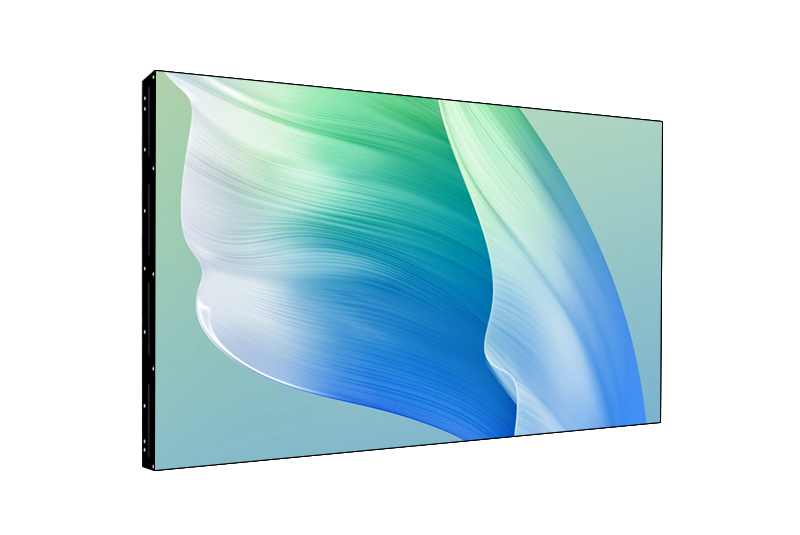

46 inch 1.7-special display screen - 17000 yuan
Huayun vision hs-4617pd adopts Samsung original imported screen, with double side seam of 1.7m m, resolution of 1920 × 1080, brightness of 500 CD / m2, contrast of 4000:1, supporting 1080p Full HD digital video display. It is widely used in security, command center, entertainment industry, enterprise display, advertising media, exhibition center, factories and mines, electric power, water conservancy, education, organ units, military and other industries.
Unit Price：17000元
我要采购 立即咨询产品详情 & 参数
Huayun Vision - Exhibition display dedicated new splicing screen -46 inch 1.7 seam splicing
Specification and model: HS-4617PD (500 brightness 1.7mm seam)
HS-4617 ultra narrow edge splicing screen, with sturdy and reliable borders. The 1.7mm ultra narrow border reduces the distance between borders, making it easy to watch the same picture when forming a TV splicing wall; Professional level high-definition image processing technology improves the color uniformity of TV splicing walls (composed of multiple splicing screens), making the picture appear very clean and tidy; High performance anti glare surface treatment disperses the reflected light of surrounding light, greatly improving the readability of images and videos displayed on the screen.
|
HS-4617PD Exhibition Display Special New LCD Splicing Unit Specification Parameters |
|||
|
[Screen Parameters] |
|||
|
ØPanel Type |
Original Samsung splicing screen (A-level) |
ØPhysical joint |
1.7mm |
|
Øscreen size |
46inch |
ØBacklight |
WLED |
|
ØScreen ratio |
16：9 |
Øbrightness |
500 cd/m² |
|
Øoutsideobservesize |
1020.02×574.61×66.1mm |
Øcontrast ratio |
4000：1 |
|
Ødisplaysize |
1018.08×572.67 mm |
ØDisplay Color |
16.7M |
|
Øphysical resolution |
1920×1080 |
Øresponse time |
8ms |
|
ØPixel pitch |
0.53×0.53mm |
ØScan frequency |
60HZ |
|
Øviewing angle |
Up and down 178 °, about 178 ° |
ØBacklight life |
≥50000 hours |
|
[Function Overview] |
|||
|
ØFeatured Features |
Intelligent GAMMA online adjustment function: adopting the most advanced built-in multiple GAMMA curve intelligent adjustment technology, it can timely adjust the color temperature curve of the LCD screen, solve the problem of poor white balance inconsistency caused by uneven brightness of different screens, and meet the requirements of brightness and color consistency in different real-life scenarios. |
||
|
ØSplicing method |
MFlexible splicing, horizontal splicing, vertical splicing, can achieve 15 rows and 15 columnsBeautiful and elegant |
||
|
Ødisplay function |
Full screen splicing, arbitrary combination, single screen display (cross screen roaming, image overlay optional) |
||
|
ØDisplay effect |
High brightness, high color gamut, and high contrast ensure perfect display effect; |
||
|
ØDisplay Color |
16.7M color, realistically reproducing every detail; |
||
|
Øviewing angle |
The viewing angle is above 178 °, providing a comprehensive viewing experience |
||
|
Øresponse speed |
8MS fast response to avoid lagging and trailing phenomena |
||
|
Øimage processing |
10 bit image chip processing technology,3D digital filtering and 3D digital denoising technology; |
||
|
Øproduct quality |
Military grade components, supporting 24-hour x 365 day uninterrupted operation; |
||
|
ØSupport resolution |
1080P and downward compatibility |
||
|
Øoperating mode |
Professional large screen control software (RS232 communication mode) |
||
|
ØFUNCTION |
By controlling software on/off, signal switching, mode switching, Chinese menu, efficient management |
||
|
Ømenu language |
Chinese English |
||
|
ØGreen Product |
Low energy consumption, zero radiation, stable image, no impact on eyes, environmentally friendly and healthy |
||
|
Signal support |
|||
|
ØVGA INPUT |
1 VGA input |
||
|
ØDVI input |
1 DVI input |
||
|
ØHDMI input |
1 HDMI input |
||
|
ØComposite Video IN |
2 BNC inputs and 1 BNC loop output |
||
|
ØLevel networking port |
1 RoadRJ45-8Input 2 channelsRJ45-8Output (RS232 protocol) |
||
|
ØColor difference input |
optional |
||
|
ØS-Terminal input |
optional |
||
|
[Work Environment] |
|||
|
Øpower input |
AC100-240V, 50 /60 Hz |
||
|
ØWorking power consumption |
≤160W |
||
|
Østandby power |
≤1W |
||
|
ØUsage temperature |
0℃～50℃ |
||
|
Østorage temperature |
-20℃～65℃ |
||
Characteristics of Signal Loop Communication Board (optional)
(1) Supporting 4K input, when using a 4-piece 1920 splicing screen (3840x2160), it can achieve point-to-point display without compression or stretching, resulting in clearer and more realistic display effects;
(2) Support DP loop connection, any input signal can be passed through the DP output loop to the DP input port of the next screen. This function can replace some functions of the distributor and matrix (if the front-end signal access is a 4k signal, it replaces the 4k distributor and 4k matrix) (no longer requiring a signal distributor);
(3) The input signal supports 90 degree, 180 degree, and 270 degree flipping, with excellent flipping effects.
(4) Support machine code (address code), the row and column addresses can be obtained at a glance, just fill in the control software, no longer have to worry about calculating binary;
(5) 13661920 commonly used screen parameters (supporting 8-bit and 10 bit LVDS LCD screens) system integration, which can be set through a dip switch during use, making installation and after-sales very convenient, eliminating the trouble of burning programs;
(6) The signal automatic detection function will automatically switch to the signal source when a signal input is detected.
(7) ST5810 PLUS supports 4k vby1 60hz LCD screen (optional).
(8) Support one signal (signal can support up to 4k) for full screen roaming and stacking (optional).
